Ball valves are crucial components in plumbing and heating systems, valued for their reliability and ease of operation. Among the various types available, brass ball valves stand out for their durability and effectiveness. This article will provide an overview of brass ball valves, focusing on their design, types, applications, and addressing some frequently asked questions.
Design and Operation
A typical 2-way brass ball valve operates as a quarter-turn, shut-off type valve, known for its straightforward and reliable mechanism. Inside the valve body, a stainless steel or chrome-plated brass ball is centrally positioned and connected to a lever. This ball features a hole through its center, allowing fluid or gas to pass when the valve is open. By turning the lever 90 degrees, the ball rotates, aligning or misaligning the hole with the pipe, thus opening or closing the valve. The lever’s position provides a clear visual indication of the valve’s status: in line with the pipe when open and perpendicular when closed.
To ensure smooth and leak-free operation, even after prolonged periods of disuse, a Teflon or PTFE seat surrounds the ball. Despite their efficiency in shutoff applications, ball valves are not suitable for flow regulation or balancing, distinguishing them from other valve types.

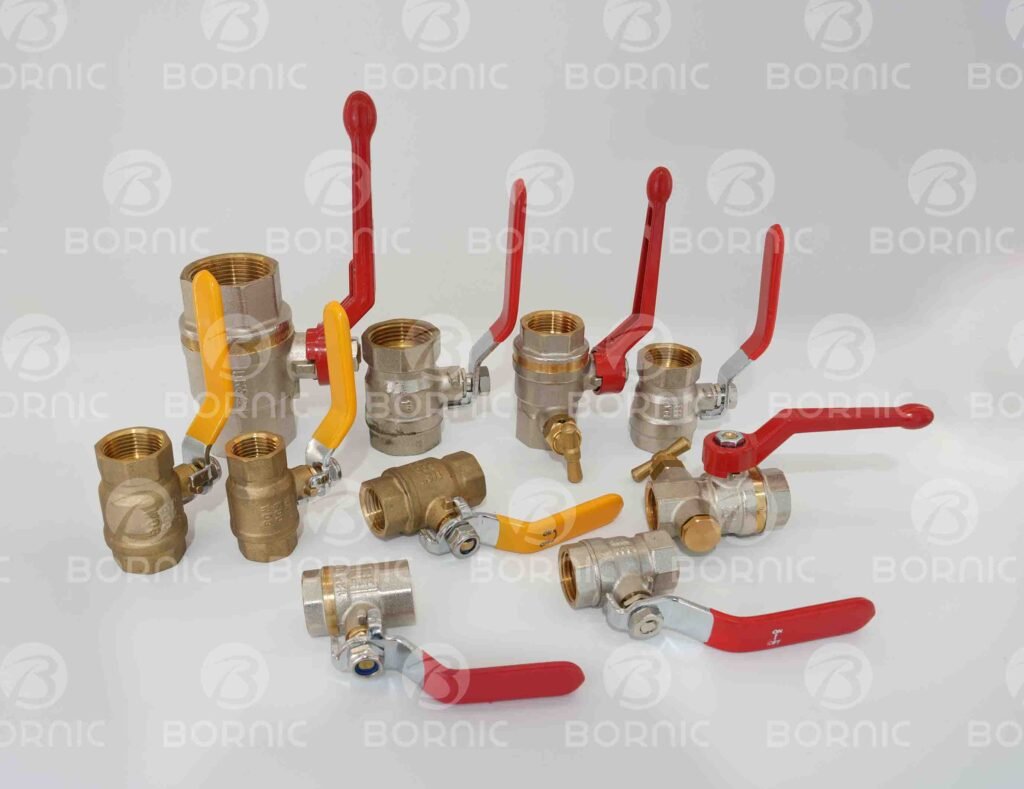

Types of Brass Ball Valves
Brass ball valves can be categorized based on port size, the number of inlets/outlets, construction, material, and connection type.
1. By Port:
- Full Port: These valves have an internal passageway that matches the size of the connected piping, minimizing flow restrictions and pressure drops.
- Standard Port: Less common and used where pressure drop is not significant.
2. By Number of Inlets/Outlets:
- 2-Way Valves: Featuring a single inlet and outlet, these valves are widely used in residential, commercial, municipal, and industrial installations.
- 3-Way and 4-Way Valves: These valves have more complex designs with drilled channels in the ball to accommodate specific flow patterns. Some models include a drain valve for purging or filling.
3. By Construction:
- 2-Piece Construction: Common in residential plumbing, these valves are permanently assembled at the factory.
- 3-Piece Construction: More suitable for commercial and industrial applications, these valves can be disassembled for maintenance without removing the valve from the pipe.
4. By Material:
- Brass and Lead-Free Brass: These are the most widely used in the building industry.
- Other Materials: Stainless steel, bronze, and polymer (plastic) are used for specific applications requiring higher pressure ratings or corrosion resistance.
5. By Connection:
- Threaded (NPT): Common in the U.S. and compatible with most standard plumbing supplies.
- Sweat (Solder or Copper): Used for direct connection to copper pipes.
- Union, PEX, Press Type: These connection types are growing in popularity for their ease of installation and secure connections.
Frequently Asked Questions
What is the lead content in “lead-free” valves?
According to current regulations, the maximum lead content allowed in “lead-free” valves is less than 0.25% of the wetted surface area.
What do “600 WOG” and “150 SWP” mean?
“600 WOG” indicates that the valve is rated for a pressure of 600 psi for cold water, oil, and gas. “150 SWP” refers to the maximum working pressure for steam applications.
What type of thread is used on these valves?
All threaded models use standard NPT threads, making them compatible with most plumbing supplies available in the U.S.
Do these valves have a packing nut?
Yes, all models of these valves come equipped with a packing nut.
What is the “waste” feature on some valve models like BVT034D?
The “waste” feature is a small drain outlet with a cap, designed for bleeding air or fluid from the system.
Can I sweat the valve without damaging the Teflon seats?
Yes, these valves are designed to withstand the high temperatures associated with soldering. Wrapping a wet rag around the valve during the process can provide additional protection for the Teflon seats.
What kind of handle do these valves have?
The valves feature a 1/4-turn, steel, rubber-coated handle for easy operation.
What applications are suitable for these valves?
Lead-free brass valves are suitable for potable water, heating (hot/cold water), gas, oil, and steam applications. Non lead-free brass valves are recommended for non-potable water applications only.
Conclusion
Brass ball valves are indispensable in plumbing and heating systems, providing reliable and efficient shutoff capabilities. By understanding their design, types, and suitable applications, one can select the appropriate valve for specific needs, ensuring optimal performance and longevity. Whether for residential or industrial use, brass ball valves are a cornerstone of effective plumbing and heating installations.
